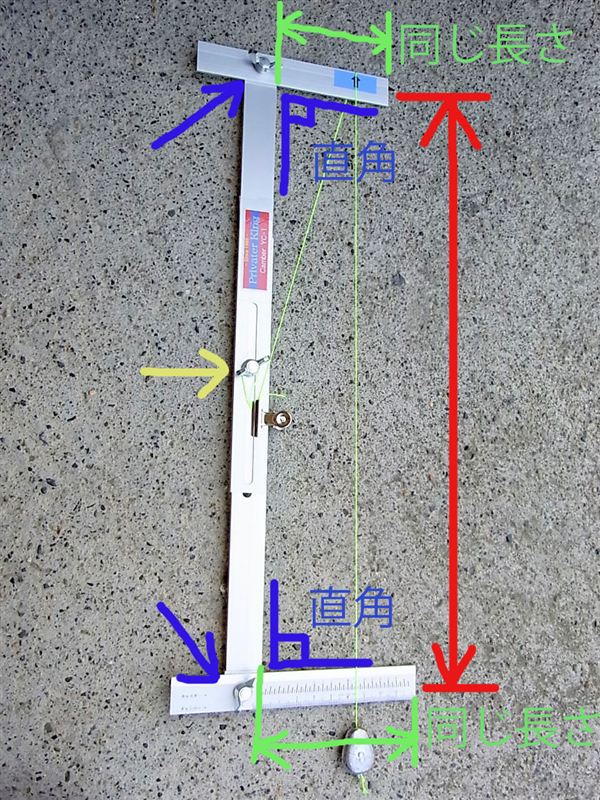

What is a Camber Gauge?

A camber gauge is a tool used in the automotive industry to measure the angle of the wheels relative to the vertical axis. It is essential for maintaining proper wheel alignment, which in turn ensures safe and efficient driving. In this article, we will take a look at how to use a camber gauge effectively.

Step 1: Preparation

Before using a camber gauge, you need to ensure that your vehicle is parked on a level surface. This is important because any incline or decline can affect the accuracy of the reading. Once you have parked your vehicle on a level surface, you need to ensure that the tires are properly inflated.

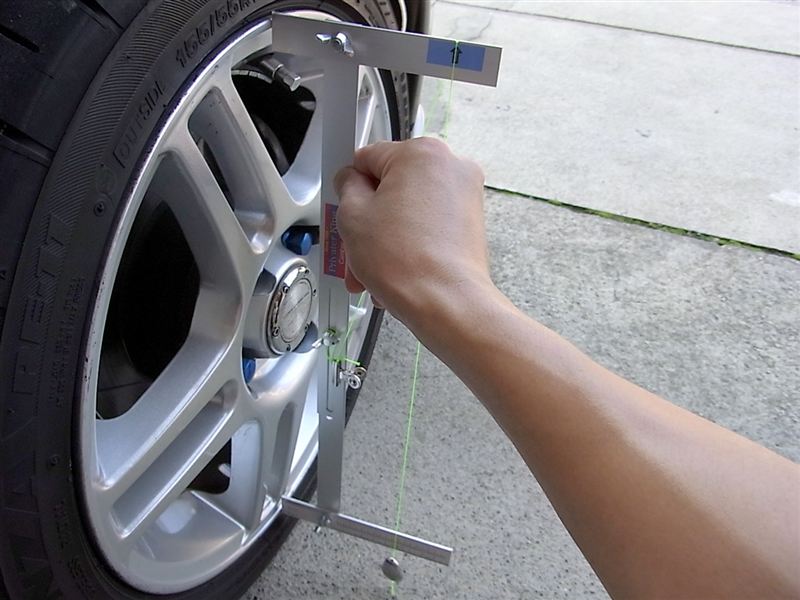

Step 2: Positioning the Camber Gauge

The next step is to position the camber gauge correctly. You can do this by placing the gauge against the wheel hub and aligning it with the center of the wheel. The gauge should be positioned such that it is parallel to the wheel.

Step 3: Taking the Reading

Once the camber gauge is positioned correctly, you can take the reading. The reading is usually given in degrees, and it indicates the angle of the wheel relative to the vertical axis. It is important to take the reading at different points around the circumference of the wheel to ensure accuracy.

Step 4: Adjusting the Camber

If the reading indicates that the camber needs to be adjusted, you can do this by loosening the bolts that hold the wheel in place and adjusting the angle of the wheel as required. Once the adjustment has been made, you need to take another reading to ensure that the camber is now within the acceptable range.

Step 5: Repeating the Process

After making the necessary adjustments, you need to repeat the process to ensure that the camber is now within the acceptable range. It is important to note that camber can affect other aspects of wheel alignment, such as toe and caster. Therefore, it is important to check all these parameters to ensure that the vehicle is properly aligned.

Tips for Using a Camber Gauge

- Always ensure that the vehicle is parked on a level surface before taking the reading. - Take the reading at different points around the circumference of the wheel to ensure accuracy. - Use a reliable and accurate camber gauge to ensure that the readings are correct. - If you are not confident in using a camber gauge, seek the assistance of a professional mechanic.

Conclusion

Using a camber gauge is essential for maintaining proper wheel alignment, which in turn ensures safe and efficient driving. By following the steps outlined in this article, you can use a camber gauge effectively and make the necessary adjustments to ensure that your vehicle is properly aligned. Remember, proper wheel alignment is crucial for safe and efficient driving, so it is worth taking the time to get it right.
